MTS Sanitary Magnetic Mixer
MTS re-optimized sterile design structure provides more stable rotation and longer bearing life. Suitable for applications requiring high cleanliness and long service life without any leakage, such as pharmaceuticals, chemicals, biochemicals, pesticides, etc.
Equipment Features
- •High-temperature resistant strong magnetic magnets
- •Non-axial contact bearings
- •Integrated isolation sleeve and dead-end free channels
- •All wetted parts of impeller and isolation sleeve are made of AISI316L stainless steel (electropolished Ra0.2)
Product Animation

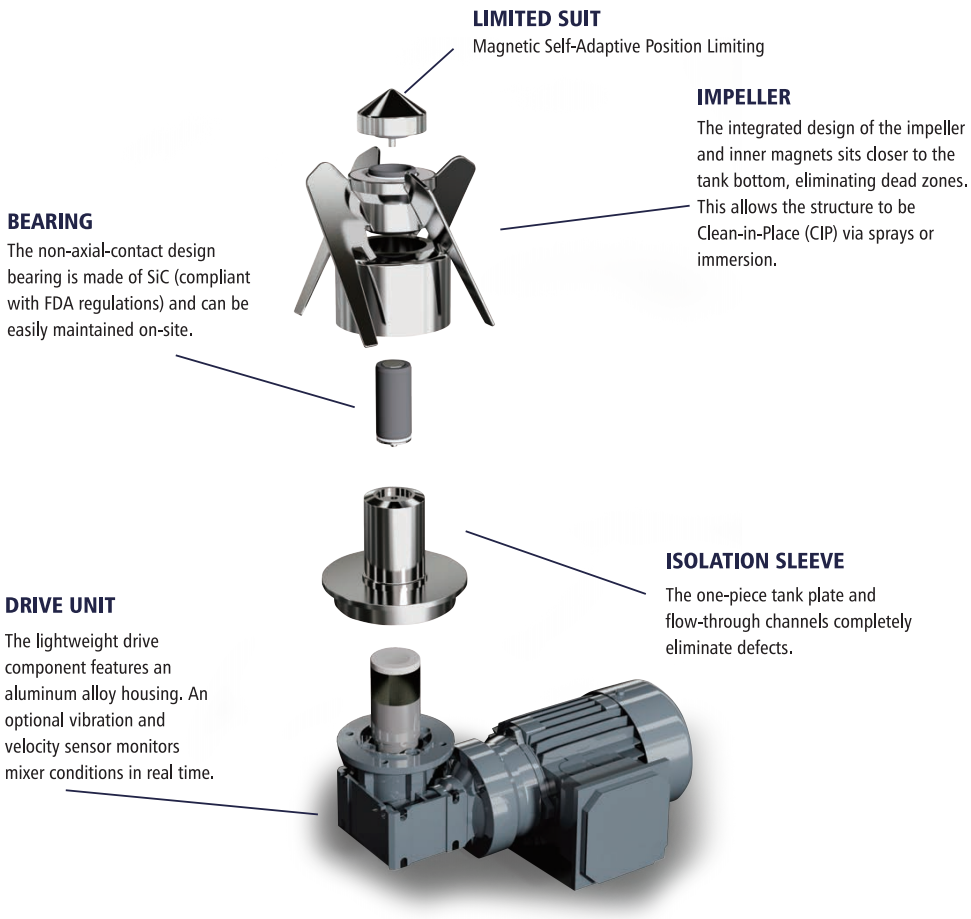

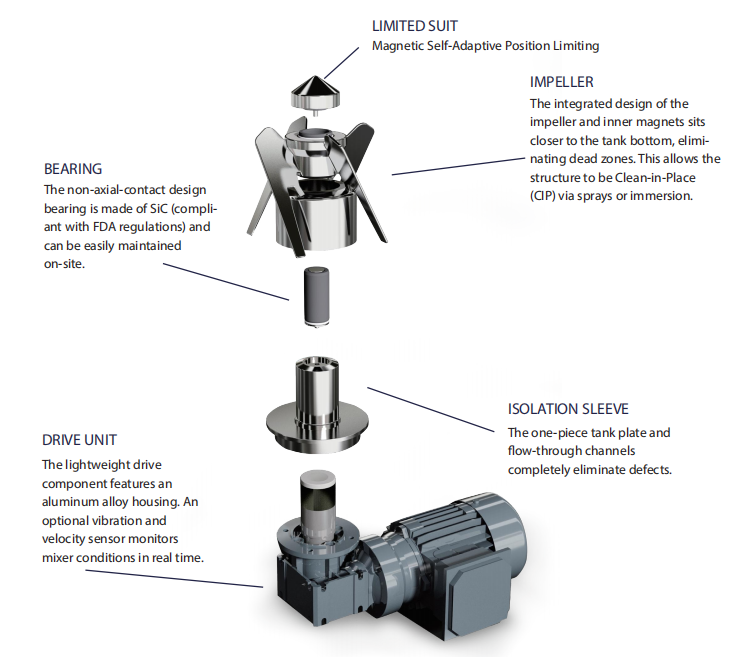

Product Structure Diagram

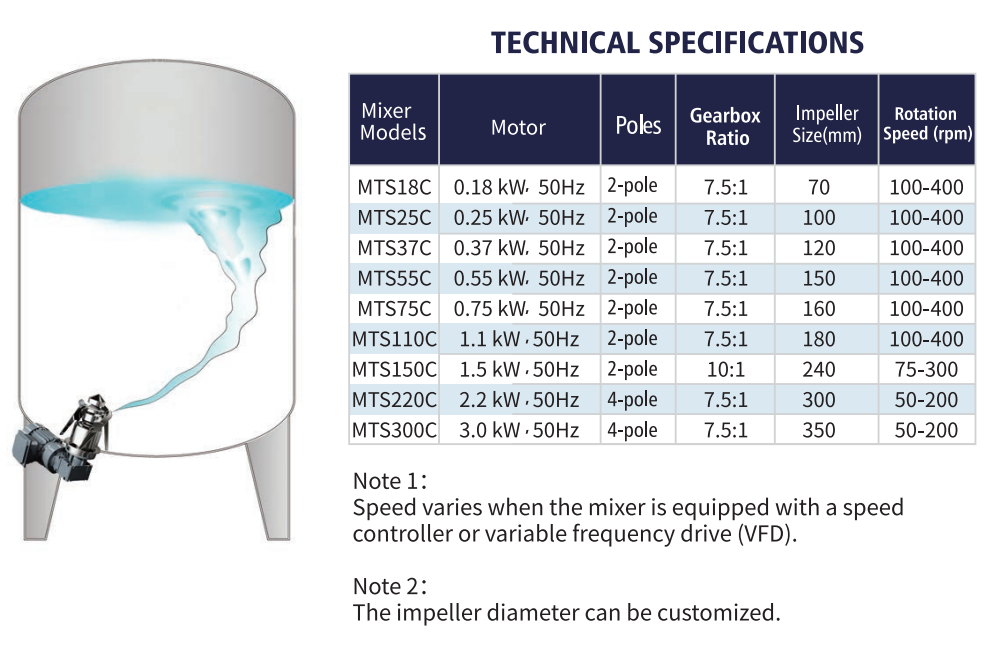

Selection Parameter Table

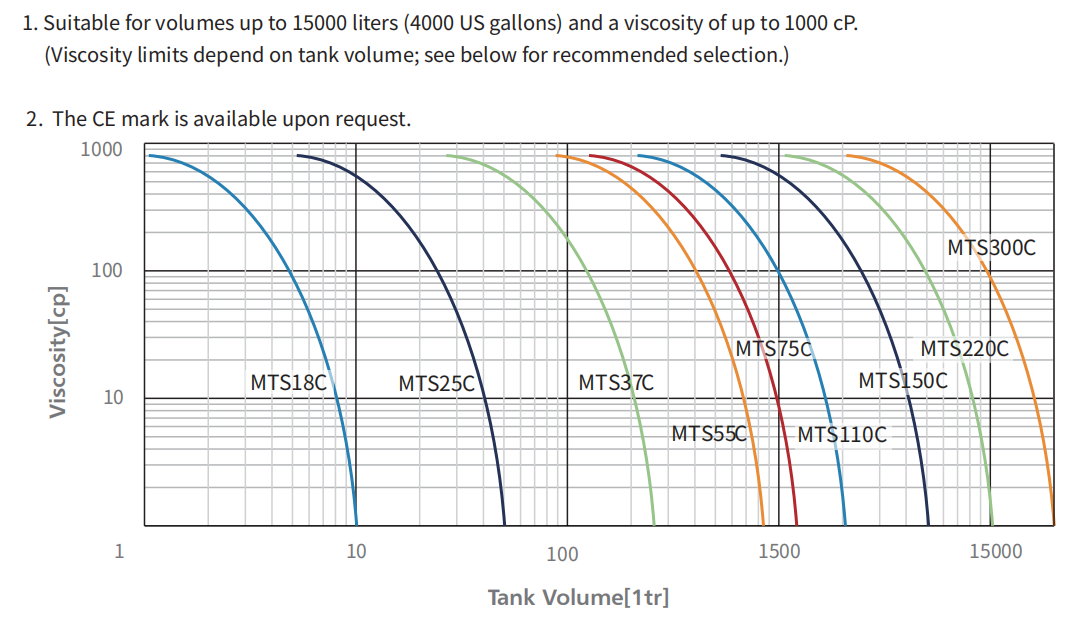

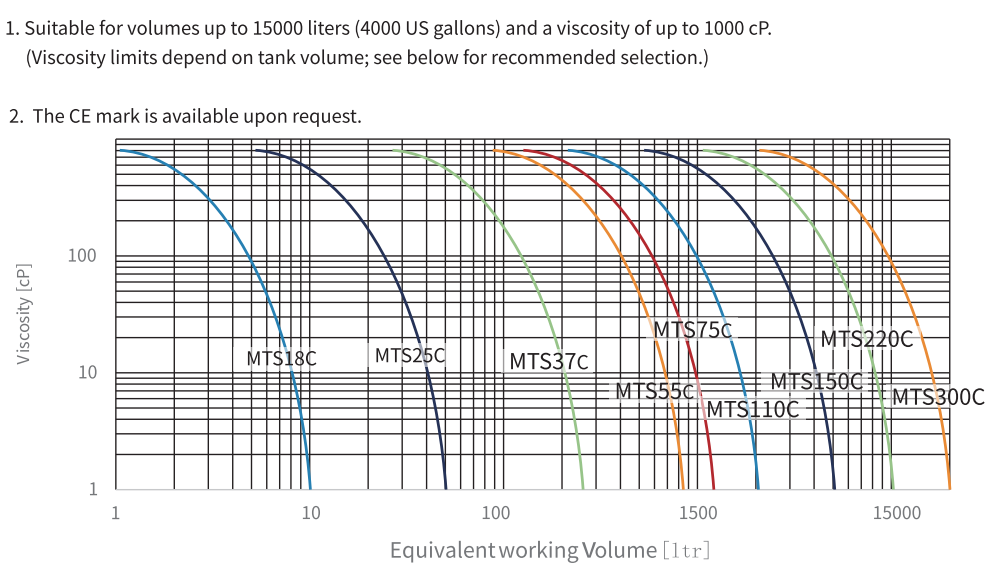

Selection Schematic
Online Selection
Use sliders or input parameters to get the best MTS model recommendation
With top and bottom elliptical heads (2:1 standard)
mm
mm
Calculated Volume
0.00 L
With top and bottom elliptical heads (2:1 standard)
