inclined-blade-open-turbine-impeller-1

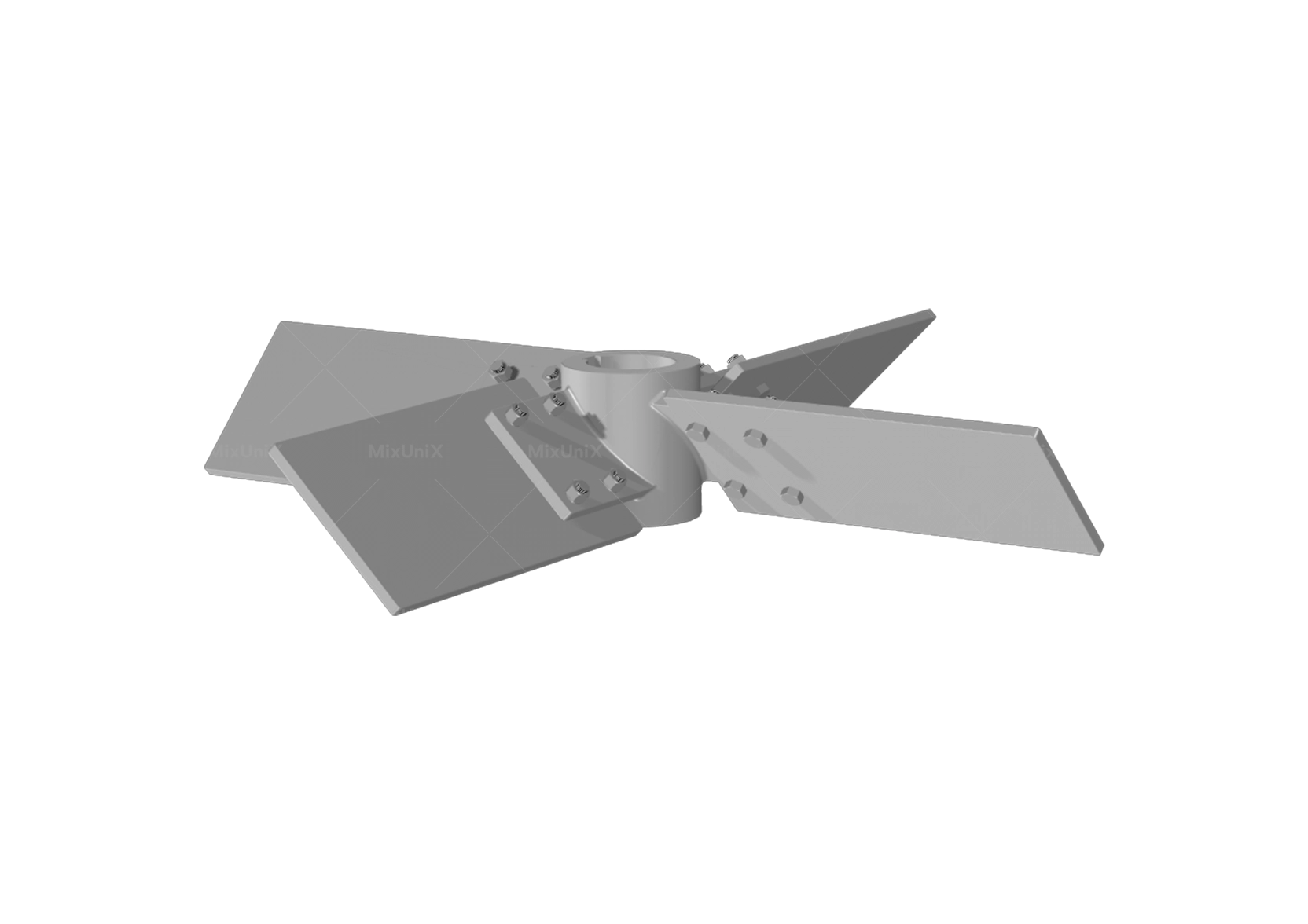

Inclined Blade Open Turbine Impeller
Impeller Diameter / Tank Diameter
0.3~0.6
Viscosity
<5,000 cP
Tip Speed
2~8 m/s
Design Features

The pitched-blade open turbine is an axial-flow impeller with good convective circulation and a degree of turbulent dispersion. It is suitable for mixing, dispersion, fine-particle crystallization, reaction, dissolution, solid-liquid suspension, heat transfer, and similar operations.

  • Stabilizer-blade structure
  • Helps prevent heavy components from settling at the bottom
  • Suitable for crystallization, extraction, washing, and other processes, as well as heat transfer in higher-viscosity liquids
Product Application
